Preg 103 Engineering Graphics                                                Assignment 17                                                                 16 April 2010





Assignment 17  [Due 30 April]

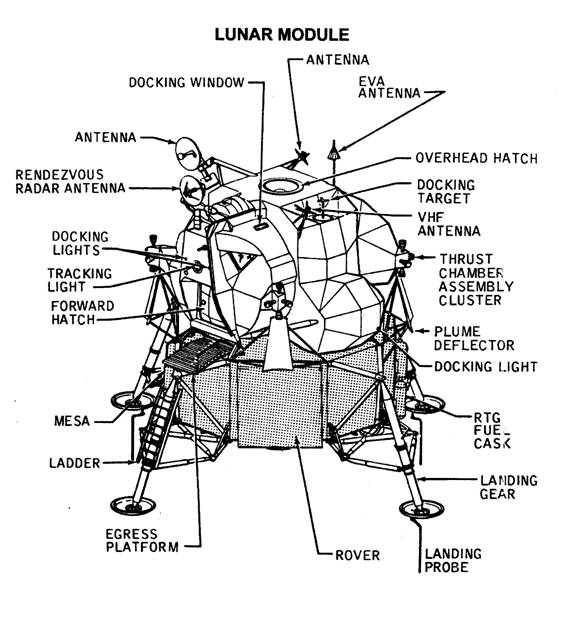

Here is a set of drawings of  the Apollo space craught modules.  Reproduce the drawings; send the drawing files by e-mail; print the drawings out and hand them in.



I didn’t find diagrams with the dimensions on the drawings.  Roughly speaking,

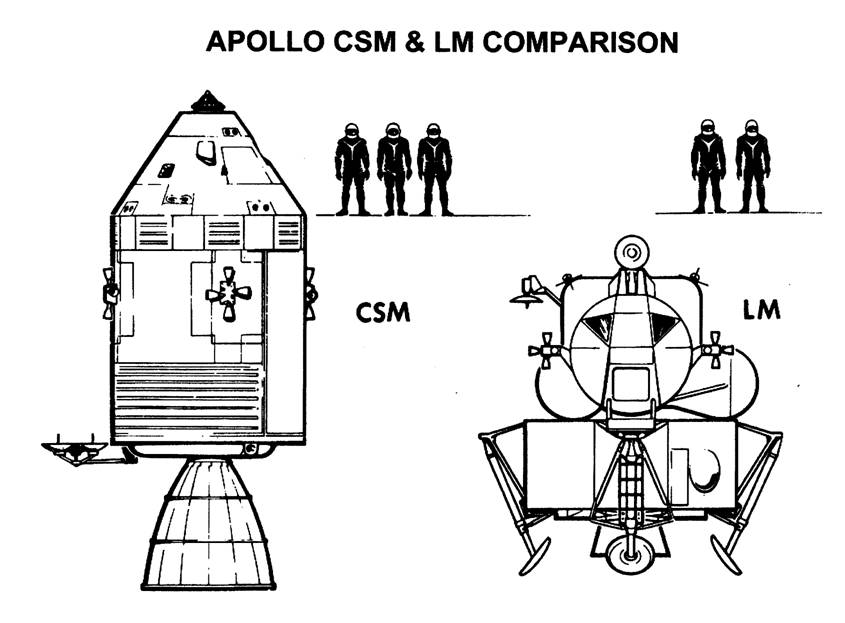

The command module is 3.47 m tall and 3.9 m in diameter.  The service & command modules together are about 8.1 m tall, excluding the engine nozzle.  That nozzle is about 2.89 m tall.



The lunar module 5.5 m is tall and 14.1 m in diameter.  The distance between the two front landing gear shown on the diagram is about 5.9 m.





apollo-1

apollo-2

apollo-3
